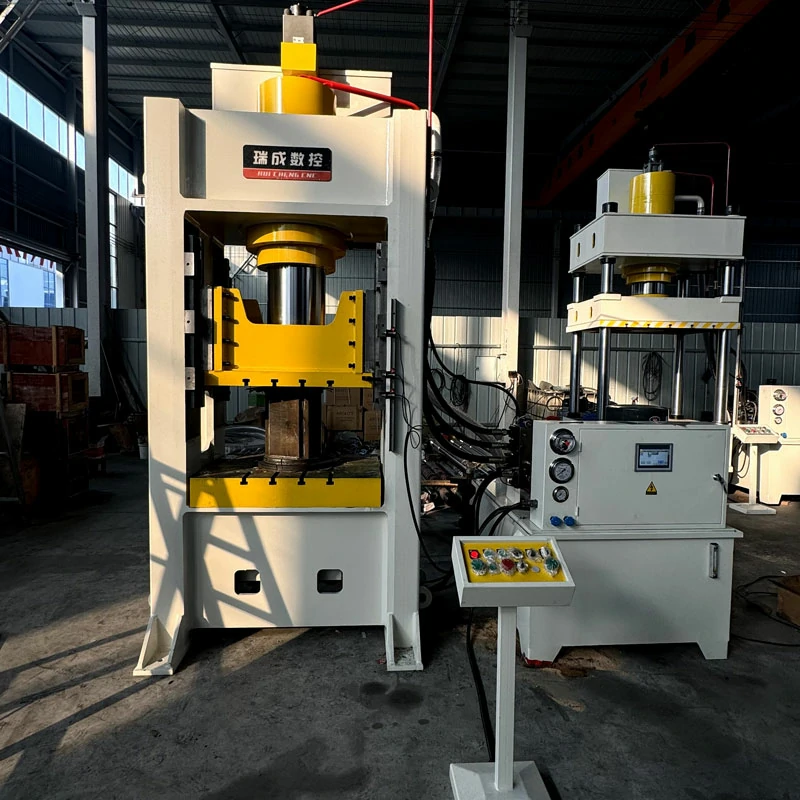

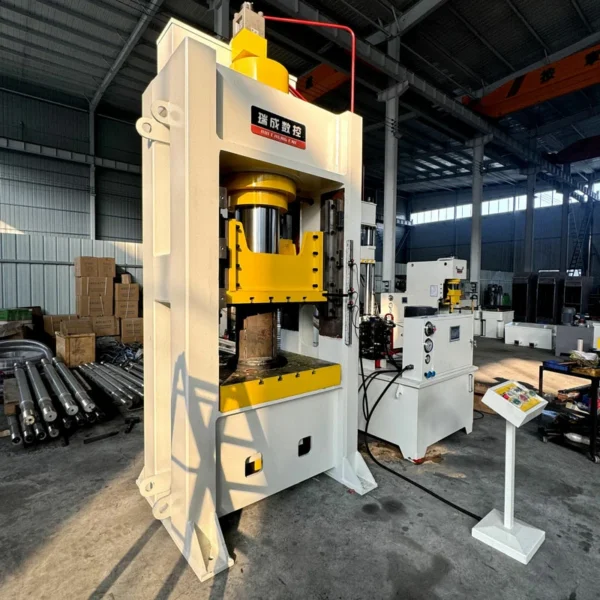

250 Ton Closed Frame Hydraulic Press

The 250 ton closed frame hydraulic press is a highly reliable and robust industrial machine specifically engineered for heavy-duty metal forming and stamping applications. It is meticulously designed to deliver stable, precise, and consistent performance in continuous production environments where high pressure and accuracy are strictly required.

This hydraulic press is commonly utilized in modern manufacturing workshops for processing medium to large metal parts. The advanced closed frame (H-frame) structure significantly improves overall machine rigidity, minimizes deflection, and helps maintain exceptional dimensional accuracy during intense operation cycles.

250 Ton Closed Frame Hydraulic Press Overview

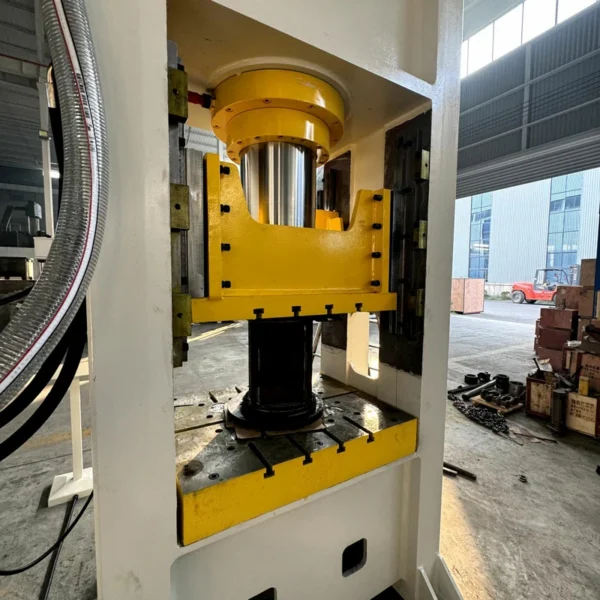

The machine is equipped with a spacious 1000×800mm worktable, providing ample space for handling medium and large workpieces efficiently. The generous 800mm opening height and 500mm stroke length allow for flexible operation, accommodating various mold heights and different production requirements.

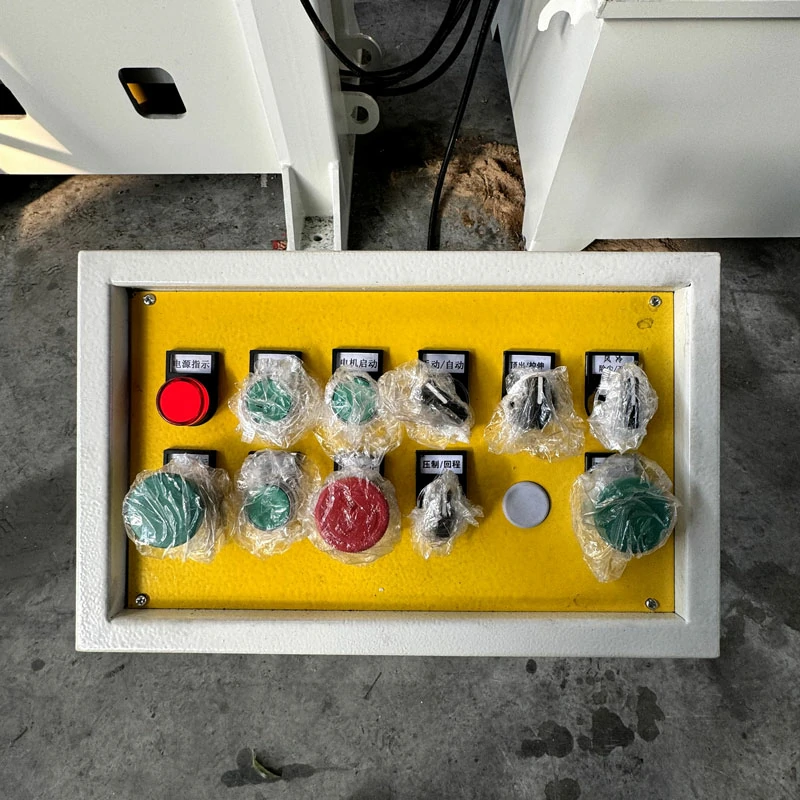

It uses an advanced PLC (Programmable Logic Controller) control system, which makes the operation highly stable, automated, and much easier to manage during daily production. The optimized hydraulic system is designed to ensure smooth, pulse-free pressure output even during long working hours. In addition, the integrated air cooling system helps maintain a stable hydraulic oil temperature, which drastically improves machine durability and long-term performance.

Key Features of the 250 Ton Closed Frame Hydraulic Press

• High Rigidity: 250 ton closed frame structure ensures stable pressing performance and minimizes machine deformation.
• Large Working Area: 1000×800mm worktable is perfectly suitable for medium and large-size parts processing.
• Optimized Stroke: 800mm opening with a 500mm stroke provides maximum flexibility for deep drawing and forming.
• Smart Control: Advanced PLC control system with touch screen for easy operation and fault diagnosis.
• Efficient Cooling: Air-cooled hydraulic system maintains stable oil temperature for continuous 24/7 performance.
• Energy Saving: Servo hydraulic system option available to reduce energy consumption and noise.
• Precision Guiding: Eight-sided long-length guide rails ensure high precision of the ram movement.
• Continuous Duty: Specifically designed for heavy-duty, continuous industrial production environments.

Wide Applications of the 250 Ton Closed Frame Hydraulic Press

This versatile machine is widely used across various heavy industries. It is the ideal solution for:

• Deep drawing and sheet metal forming processes
• Blanking, punching, and bending operations
• Automotive parts stamping and manufacturing
• Kitchenware and home appliance metal forming
• Assembly pressing and compression molding tasks
• General industrial manufacturing and forging environments

Technical Specifications for 250 Ton Closed Frame Hydraulic Press

Parameter	Specification
Machine Model	250 Ton Closed Frame Hydraulic Press
Structure Type	C-frame / Closed Frame Hydraulic Press
Nominal Press Capacity	2500 kN (250 Ton)
Worktable Size	1000 × 800 mm
Open Height (Opening)	800 mm
Ram Stroke	500 mm
Hydraulic System Pressure	25 MPa
Main Motor Power	11 kW / 15 kW
Control System	PLC Automatic Control
Overall Weight	Approx. 8500 kg

Safety and Protection Systems

Operator safety is our top priority. The 250 ton closed frame hydraulic press is equipped with comprehensive safety features:

• Safety Light Curtains: Automatically stops the machine if an operator’s hand enters the danger zone.
• Two-Hand Control: Requires simultaneous button pressing to prevent accidental activation.
• Emergency Stop: Strategically placed emergency stop buttons for immediate machine halting.
• Overload Protection: Hydraulic relief valves prevent damage from unexpected overloading.

Maintenance and After-Sales Service

We provide comprehensive support to ensure your machine runs smoothly:

• 12-month free warranty coverage for core components.
• Lifetime technical support via video call, email, or phone.
• Detailed English manual and operation videos provided.
• Fast delivery of spare parts via international express.

Related Pages

• Closed Frame Hydraulic Press Category
• All Hydraulic Press Products

External Reference

Learn more about hydraulic press principles from Wikipedia Hydraulic Press.

Industry Overview

Hydraulic press machines are widely used in modern manufacturing industries for shaping, pressing, and forming metal materials. They are an essential part of industrial production lines, driving efficiency and precision in the global manufacturing sector.

Conclusion

In summary, the 250 ton closed frame hydraulic press is an indispensable asset for any metal forming or stamping workshop. With its robust closed frame design, advanced PLC control, and high precision, it guarantees superior product quality and operational efficiency. Contact us today for a quote and elevate your manufacturing capabilities.
