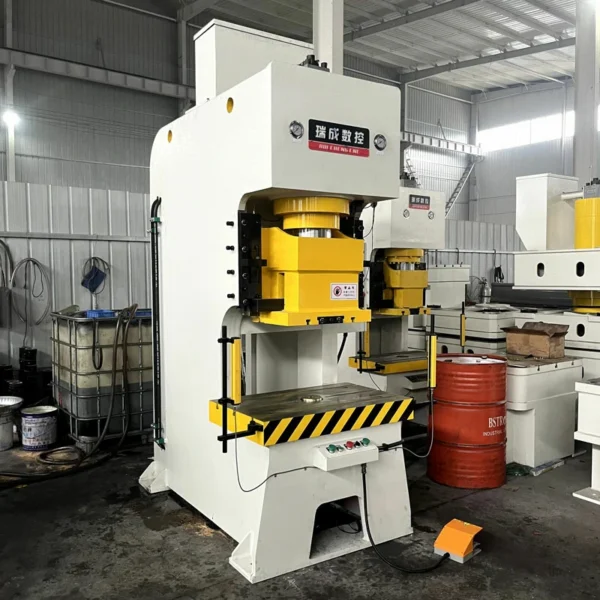

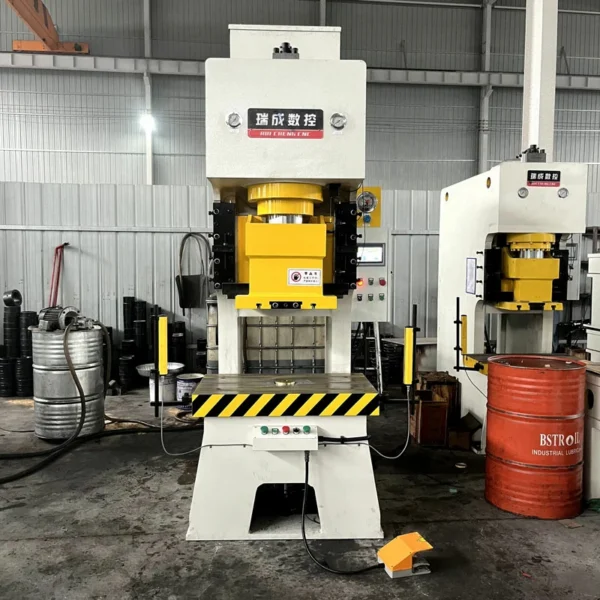

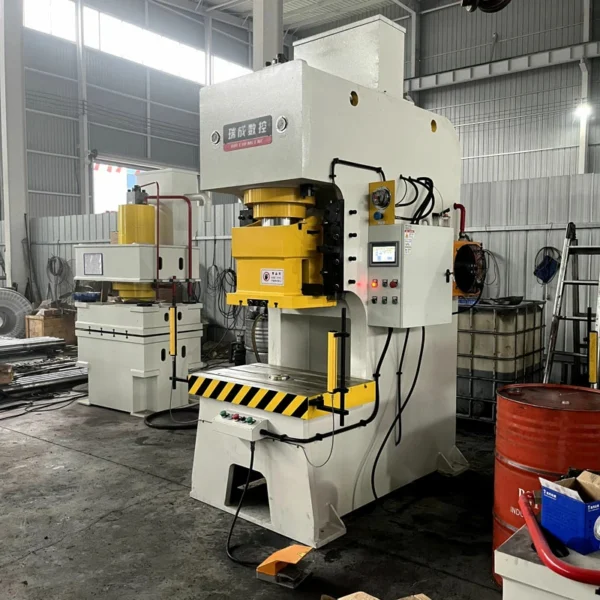

125 Ton Hydraulic Punching Press

Product Introduction

The 125 ton hydraulic punching press from Ruicheng CNC is designed for punching, stamping, sheet metal processing, and general metal forming. With a 560 × 1000 mm worktable, 560 mm opening, and 260 mm stroke, this hydraulic press provides a practical working area for a wide range of metal processing tasks. The machine is equipped with air cooling and a PLC touch screen for convenient operation and control.

Technical Specifications

Parameter	Specification
Press Capacity	125 Tons
Machine Type	Hydraulic Punching Press
Worktable Size	560 × 1000 mm
Opening Height	560 mm
Stroke	260 mm
Cooling System	Air Cooling
Control System	PLC Touch Screen

Key Features & Advantages

✅ 125 Ton Pressing Capacity

The 125 ton hydraulic capacity provides the force required for punching, stamping, and general metal forming operations.

✅ Large Working Table

The 560 × 1000 mm worktable provides a practical working area for positioning sheet metal, components, and tooling during processing.

✅ 560 mm Opening

The 560 mm opening provides useful working space between the pressing components for different workpiece and tooling arrangements.

✅ PLC Touch Screen Control

The PLC touch screen provides a convenient interface for machine operation and process control.

✅ Air Cooling System

The air cooling system helps manage heat generated during hydraulic press operation for continuous workshop use.

Working Principle of the 125 Ton Hydraulic Punching Press

The 125 ton hydraulic punching press generates pressing force through a hydraulic system. The workpiece is positioned on the 560 × 1000 mm worktable, and the hydraulic cylinder moves through its 260 mm stroke to apply controlled force.

The 560 mm opening provides working space for tooling and workpieces. During production, the PLC touch screen provides an operating interface, while the air cooling system helps manage heat within the hydraulic system.

Typical Applications

This hydraulic punching press can be used for a range of metal processing operations, including:

Sheet Metal Punching
Metal Stamping
Sheet Metal Forming
General Metal Forming
Industrial Pressing Operations

Why Choose Ruicheng CNC?

Ruicheng CNC supplies hydraulic presses for different industrial metal processing requirements. This 125 ton model combines a 560 × 1000 mm worktable, 260 mm stroke, 560 mm opening, air cooling, and PLC touch screen control for punching, stamping, sheet metal processing, and general metal forming applications.

For specific workpiece dimensions, tooling requirements, or machine configurations, please contact our team for further information.

Learn More About Hydraulic Technology

Hydraulic presses use hydraulic pressure to generate controlled mechanical force for pressing and forming operations. You can learn more about the basic technology behind these machines through hydraulic press technology.

Frequently Asked Questions (FAQ)

Q: What is the capacity of this hydraulic punching press?

A: This model has a rated pressing capacity of 125 tons.

Q: What is the worktable size?

A: The worktable measures 560 × 1000 mm.

Q: What is the stroke of the press?

A: The hydraulic press has a 260 mm stroke.

Q: Does this hydraulic press have PLC control?

A: Yes. The machine is equipped with a PLC touch screen for operation and control.

Q: Does the machine use air cooling?

A: Yes. This model is equipped with an air cooling system.
