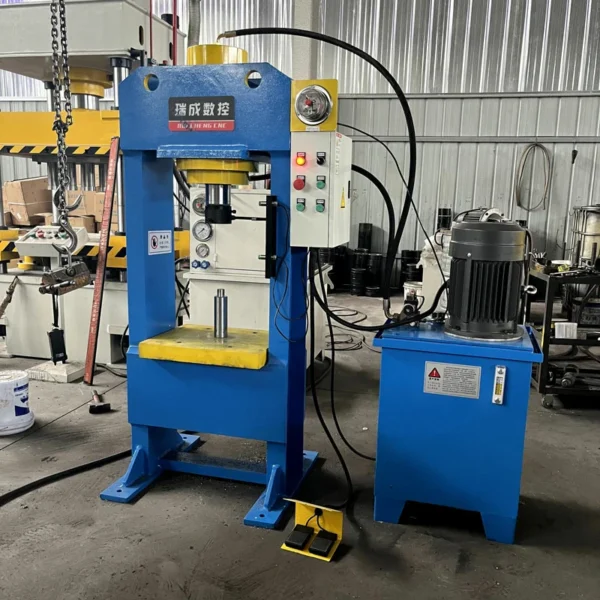

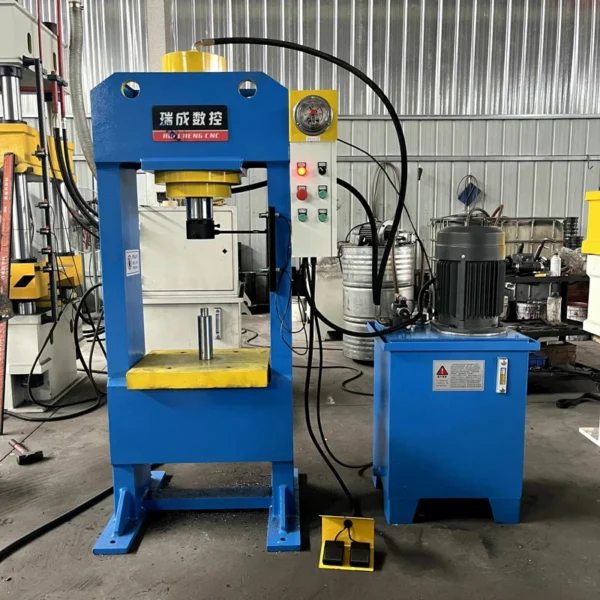

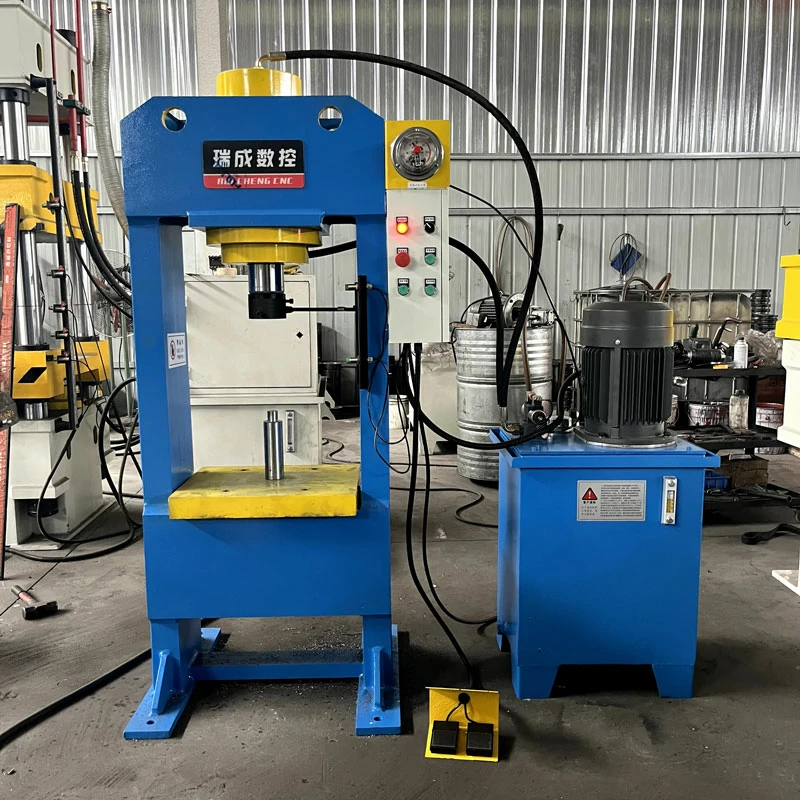

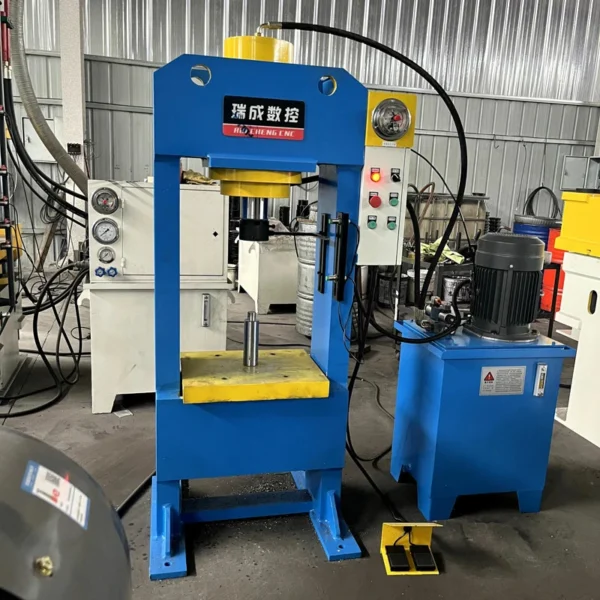

63 Ton Gantry Hydraulic Press
Compact 63 ton gantry hydraulic press with a 560 mm opening, 260 mm stroke, and 500 × 400 mm worktable for versatile metal forming and pressing.
📑 Table of Contents
Product Introduction
The 63 ton gantry hydraulic press is a compact yet powerful industrial machine specifically designed for metal forming, bending, punching, straightening, and general pressing work. Its open gantry structure provides exceptionally convenient access to the working area from multiple directions, making it highly suitable for workshops and industrial applications that require flexible positioning of workpieces.
This versatile 63 ton gantry hydraulic press combines robust construction with practical functionality. Whether you need to perform precision metal bending, component assembly, or general pressing operations, this gantry-style hydraulic press delivers consistent performance with minimal maintenance requirements. Explore more models in our Gantry Hydraulic Press Category.
Technical Specifications
| Parameter | Specification |
|---|---|
| Press Force | 63 Tons (630 kN) |
| Machine Type | Gantry Hydraulic Press |
| Table Size | 500 × 400 mm |
| Daylight Opening | 560 mm |
| Stroke | 260 mm |
| Hydraulic System Pressure | 25 MPa |
| Motor Power | 5.5 kW |
| Machine Weight | Approx. 1200 kg |
Key Features & Advantages
Compact Industrial Design
The gantry frame provides a practical working area while maintaining a compact machine layout, perfect for workshop use where space is limited. The open design allows three-sided access to the work area.
Powerful 63 Ton Pressing Capacity
With a maximum pressing force of 63 tons, the machine is suitable for a wide range of general metal forming, bending, and pressing operations. Check out our Hydraulic Press Applications Guide for more information.
Large 560 mm Working Opening
The generous 560 mm daylight provides useful working space for positioning different workpieces and tooling, accommodating various mold heights and production requirements.
Flexible Applications
The machine can be used for bending, punching, straightening, assembly pressing, and other general metalworking tasks, making it an indispensable asset for modern manufacturing workshops.
Cost-Effective Solution
Compared with larger hydraulic presses, this 63 ton model offers excellent value for money while still delivering sufficient pressing force for most industrial applications.
Working Principle
This 63 ton gantry hydraulic press uses hydraulic pressure to drive the main cylinder and generate controlled pressing force. The workpiece is positioned on the 500 × 400 mm working table, while the 260 mm stroke provides the required movement for pressing operations.
The open gantry structure allows operators to access the work area from multiple directions, making loading and positioning more convenient for different applications. The hydraulic system includes a relief valve to prevent overloading and ensure operator safety.
The press operates on Pascal’s principle, where pressure applied to the hydraulic fluid is transmitted equally in all directions, allowing the hydraulic system to generate 63 tons of pressing power. For more information about the basic working principle of hydraulic equipment, you can refer to this hydraulic press technology overview on Wikipedia.
Typical Applications
This versatile 63 ton gantry hydraulic press is widely used across multiple manufacturing sectors. Typical applications include:
- Metal Bending & Forming
- Metal Punching & Blanking
- Component Assembly Pressing
- Metal Straightening Operations
- General Industrial Pressing Tasks
- Automotive Parts Manufacturing
- Hardware & Electronics Pressing
Safety Features
Operator safety is our top priority. The 63 ton gantry hydraulic press is equipped with comprehensive safety systems:
- Emergency Stop Button: Strategically placed for immediate machine halting in case of emergency.
- Overload Protection Valve: Automatically relieves pressure if the force exceeds 63 tons, protecting the machine and molds.
- Two-Hand Control Option: Available to ensure the operator’s hands are safe during the pressing cycle.
- Safety Light Curtains: Optional industrial sensors that stop the ram if an obstacle is detected in the working zone.
Maintenance Guide
To ensure optimal performance and extend the service life of your hydraulic press, regular maintenance is essential:
- Daily: Check hydraulic oil level, clean the worktable, and inspect for any unusual noises or leaks.
- Weekly: Lubricate moving parts and check electrical connections for tightness.
- Monthly: Inspect hydraulic hoses for wear, clean the oil filter, and verify system pressure.
- Annually: Replace the hydraulic oil completely and conduct a comprehensive machine inspection.
Frequently Asked Questions
Q: What is the maximum pressing force?
A: The hydraulic press provides a maximum pressing force of 63 tons (630 kN), making it suitable for heavy-duty industrial tasks.
Q: What is the working table size?
A: The working table measures 500 × 400 mm, providing ample space for most metalworking operations.
Q: What are the opening and stroke dimensions?
A: The daylight opening is 560 mm and the stroke is 260 mm, offering flexible working space for various applications.
Q: Can the specifications be customized?
A: Yes, as a direct manufacturer, we can customize the worktable size, stroke, and opening height according to your specific requirements. Contact our engineering team for custom quotations.
Q: What is the warranty period?
A: We provide a 12-month free warranty for core components and lifetime online technical support.
Why Choose Our 63 Ton Gantry Hydraulic Press?
The 63 ton model combines a practical gantry structure with a 560 mm opening and 260 mm stroke. Its 500 × 400 mm working table provides a suitable platform for common metalworking and pressing tasks.
The machine is designed for industrial workshops that need a straightforward hydraulic solution for bending, punching, forming, and assembly pressing. For higher capacity requirements, also check our complete Hydraulic Press Machine range.
Packaging & Shipping
The 63 ton gantry hydraulic press is packed in a strong, fumigation-free wooden case, which is fully suitable for ocean freight and long-distance transportation. Standard models are typically shipped within 15-20 business days.
Conclusion
In summary, the 63 ton gantry hydraulic press is an excellent investment for workshops requiring reliable, cost-effective pressing solutions. With its compact design, powerful 63-ton capacity, and versatile applications, it delivers outstanding value for small to medium-sized manufacturing operations. Contact us today to request a free quote!
