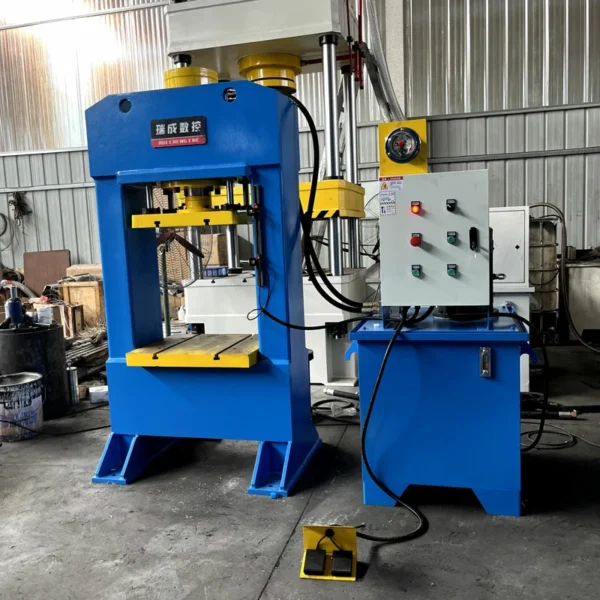

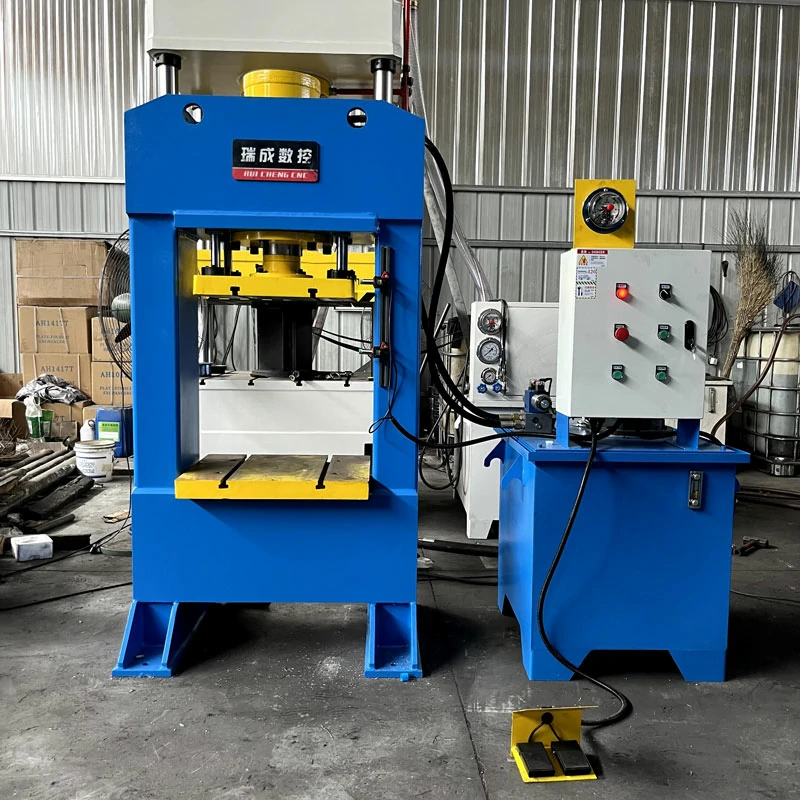

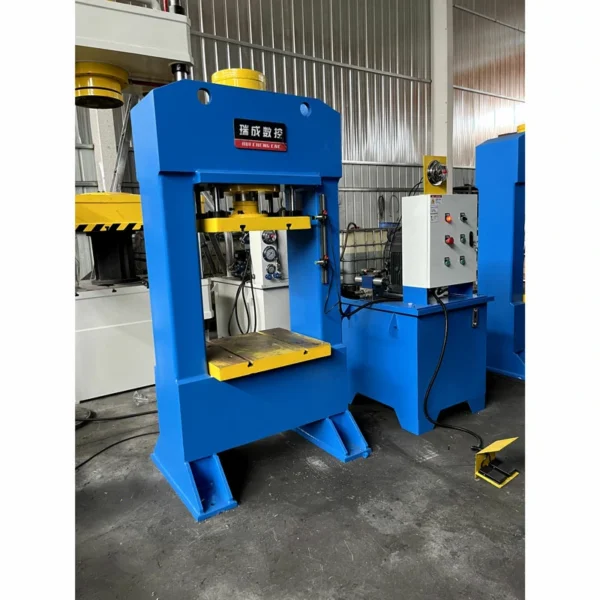

80 Ton Gantry Hydraulic Press Machine

The 80 ton gantry hydraulic press is a heavy-duty industrial solution designed for precision metal forming, sheet metal stamping, and assembly pressing applications. Built with a rigid gantry frame, this machine ensures high structural stability and long-term durability under continuous production conditions.

Product Overview

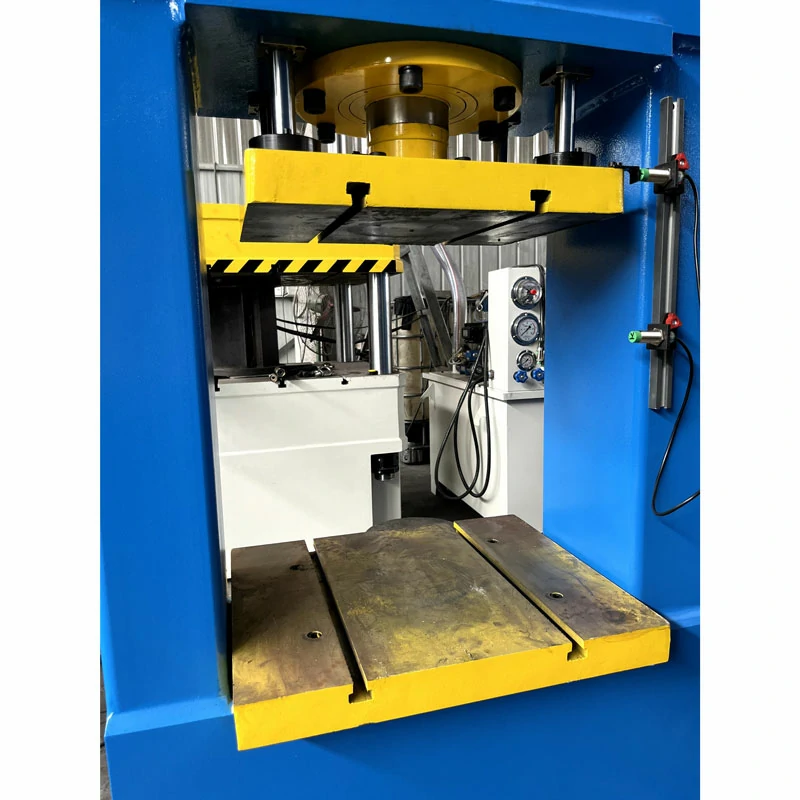

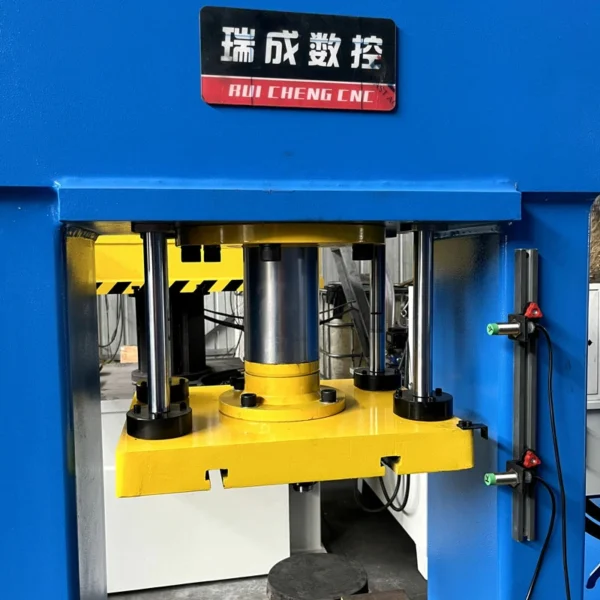

This gantry hydraulic press machine is widely used in industrial manufacturing environments where consistent force and accuracy are required. It is suitable for medium-sized workpieces with a 600×500mm worktable, providing stable support for various metal processing tasks.

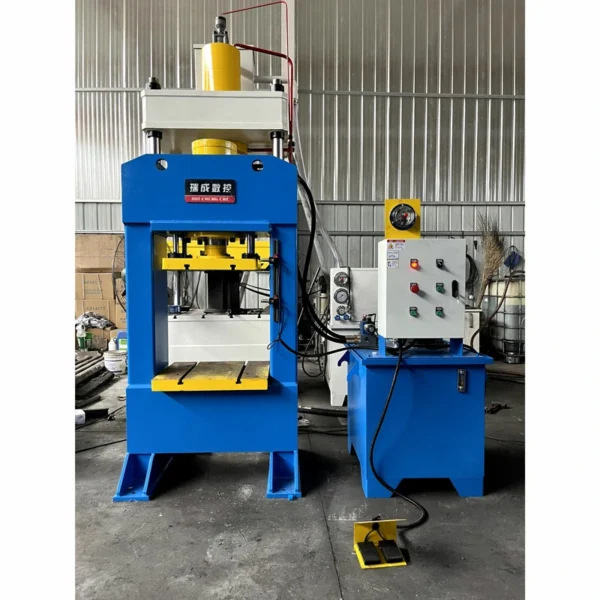

With a 600mm opening and 300mm stroke, the machine offers flexible working space for different forming operations. It is commonly applied in metal forming press operations, sheet metal stamping processes, and general industrial pressing tasks.

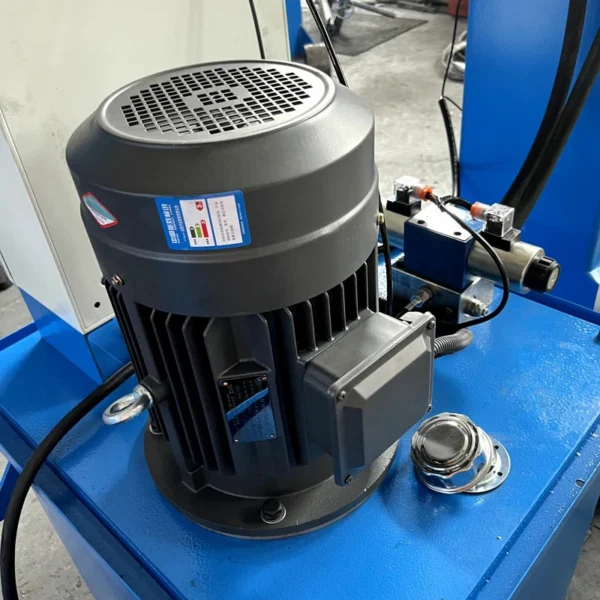

The hydraulic system is powered by a 5.5kW motor, delivering stable pressure output and efficient performance. This ensures reliable operation in demanding production environments.

Key Features

• 80 ton pressing capacity for industrial applications
• Rigid gantry frame structure for stable operation
• 600mm opening and 300mm stroke for flexible processing
• 5.5kW hydraulic system for stable power output
• Suitable for metal forming and sheet metal stamping
• Advanced safety protection systems
• Easy maintenance and operation

Technical Specifications

Parameter	Specification
Machine Type	80 Ton Gantry Hydraulic Press
Structure	Gantry Frame Hydraulic Press
Press Capacity	80 Ton
Opening	600 mm
Stroke	300 mm
Worktable Size	600 × 500 mm
Power	5.5 kW
Hydraulic Pressure	25 MPa
Machine Weight	Approx. 3500 kg

Applications

This industrial hydraulic press is suitable for a wide range of manufacturing processes including:

• Metal forming press operations
• Sheet metal stamping applications
• Assembly pressing processes
• Deep drawing operations
• Compression molding tasks
• Bending and straightening work
• Punching and blanking operations
• Riveting and joining applications

Safety Features

The 80 ton gantry hydraulic press is equipped with comprehensive safety systems to protect operators and ensure workplace compliance:

• Emergency Stop Button: Immediately halts all machine operations
• Two-Hand Control System: Prevents accidental activation
• Safety Light Curtains: Detects obstacles in the working area
• Overload Protection: Prevents damage from excessive pressure
• Anti-Drop Device: Secures the ram in case of power failure

Why Choose This Gantry Hydraulic Press

Compared with standard hydraulic presses, the gantry structure provides better stability and easier loading of workpieces. It is suitable for manufacturers who require precision, efficiency, and durability in metal forming applications.

Advantages include:

• Superior rigidity and vibration resistance
• Open design for easy material handling
• Energy-efficient hydraulic system
• Low maintenance requirements
• Long service life with proper care
• Cost-effective production solution

Maintenance and Care

To ensure optimal performance and extend the service life of your hydraulic press machine, regular maintenance is essential:

• Daily: Check hydraulic oil level and inspect for leaks
• Weekly: Lubricate moving parts and clean worktable
• Monthly: Inspect hydraulic hoses and electrical connections
• Annually: Replace hydraulic oil and filter elements

Quality Assurance

Each 80 ton gantry hydraulic press undergoes rigorous quality control testing before delivery:

• Precision machining of all critical components
• High-strength steel frame construction
• CE certification and ISO compliance
• Factory acceptance testing (FAT)
• 12-month warranty coverage

Installation Requirements

Proper installation ensures safe and efficient operation:

• Foundation: Reinforced concrete floor (minimum 200mm thickness)
• Power Supply: 380V/50Hz three-phase electrical connection
• Space: Allow 1.5m clearance on all sides for operation and maintenance
• Environment: Indoor use, temperature range 5-40°C

Customer Support

We provide comprehensive after-sales service including:

• Professional installation guidance
• Operator training programs
• Technical support via phone and email
• Spare parts availability
• On-site service when needed

External Reference

Learn more about hydraulic press technology from Hydraulic Press Overview.

Internal Links

Explore more models in our Gantry Hydraulic Press category.

View additional machines in our Hydraulic Press Machine category.

Conclusion

The 80 ton gantry hydraulic press machine is a reliable industrial solution for metal forming, sheet metal stamping, and assembly pressing applications. Its rigid structure and stable hydraulic system make it suitable for modern manufacturing environments. With comprehensive safety features, easy maintenance, and excellent customer support, this press delivers exceptional value for automotive, aerospace, appliance, and general metalworking industries. Invest in quality equipment that enhances productivity and ensures operator safety.
