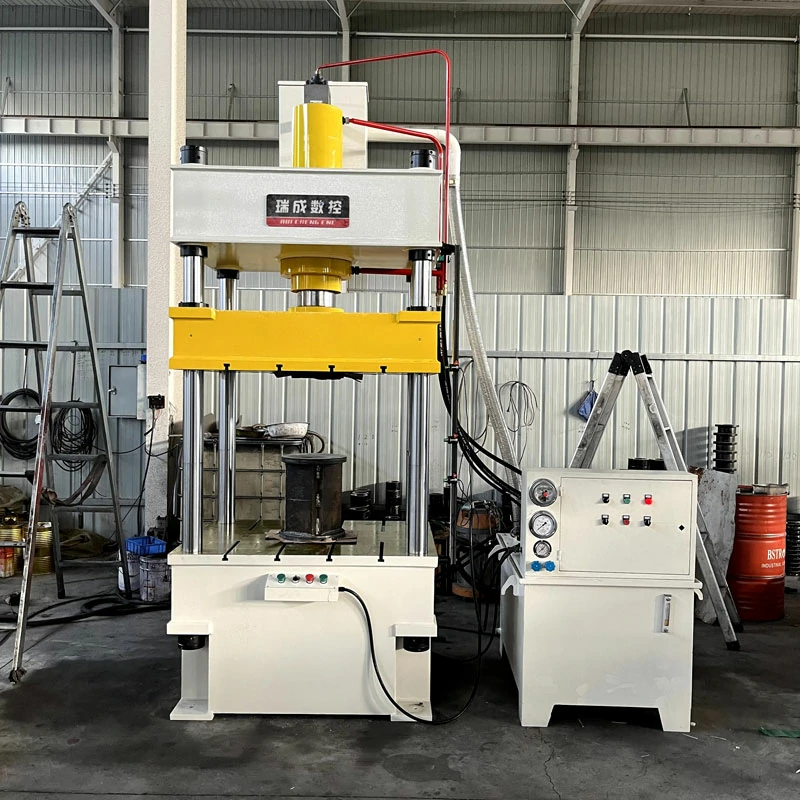

100 Ton Four Column Hydraulic Press Machine
100 ton four column hydraulic press for metal forming, stamping and punching with 1000×1000mm table and 20T ejector system.
Product Introduction
Engineered for stable industrial forming operations, the 100 ton four column hydraulic press is designed for precision metal forming, stamping, and punching applications. With a rigid four-column structure and balanced hydraulic system, it delivers consistent pressing performance for light to medium industrial production.
This hydraulic press machine is equipped with a 1000×1000mm worktable and a 20 ton lower ejector system, making it suitable for molding, forming, and one-step pressing processes in industrial workshops.
Technical Specifications
| Parameter | Specification |
|---|---|
| Press Capacity | 100 Tons |
| Structure Type | Four Column Hydraulic Press |
| Worktable Size | 1000 × 1000 mm |
| Lower Cylinder Force | 20 Tons |
| Lower Stroke | 220 mm |
| Application Type | One-step Forging / Pressing |
Key Features & Advantages

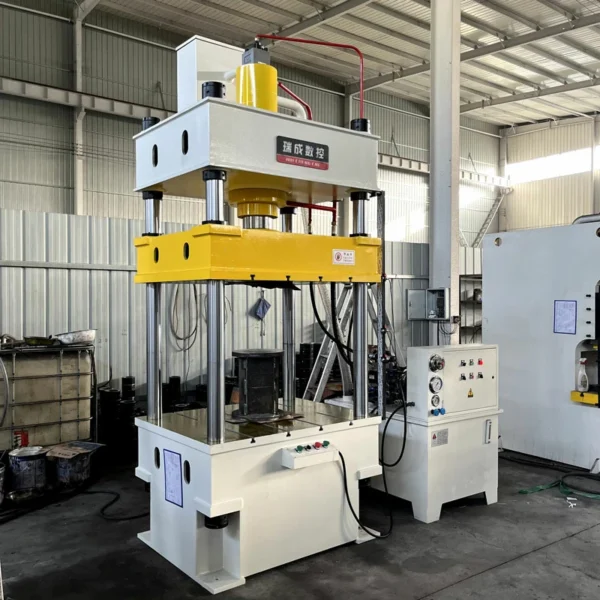

Rigid Four Column Structure
The reinforced frame ensures stable force distribution and reduces deformation during continuous pressing.

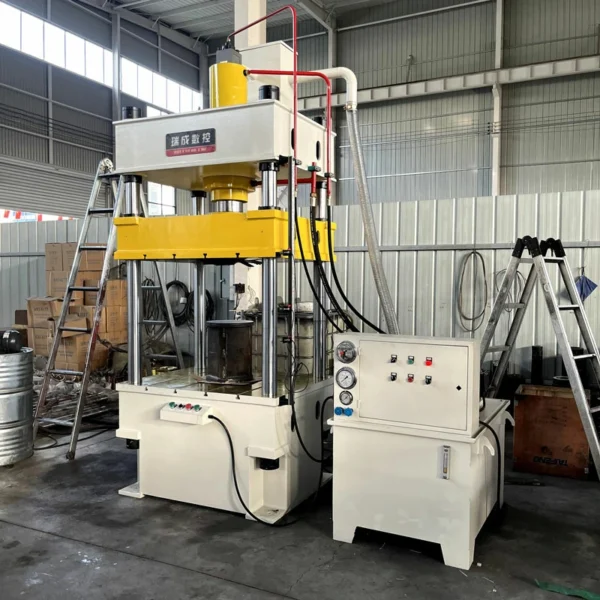

Integrated Lower Cylinder System
The 20 ton ejector improves demolding efficiency and supports multi-step forming processes.
Stable Hydraulic Performance
Designed for consistent pressure output, ensuring reliable performance in metal forming and stamping operations.
Industrial Grade Worktable
The 1000×1000mm table provides a stable platform for medium-sized workpieces and molds.
Working Principle of Four Column Hydraulic Press
The four column hydraulic press operates based on Pascal’s principle, where hydraulic oil transfers pressure evenly throughout the system.
The 100 ton hydraulic system generates downward force through the main cylinder, while the lower ejector cylinder assists in releasing and forming workpieces, improving production efficiency and cycle stability.
External reference:
Hydraulic Press Principle
Typical Applications
This 100 ton hydraulic press machine is widely used in:
- Metal forming and shaping
- Sheet metal stamping
- Punching and blanking operations
- Automotive small parts production
- Industrial workshop pressing tasks
Internal link:
Four Column Hydraulic Press Machines
Advantages in Industrial Use
Compared with light C-frame presses, the four column structure provides higher rigidity and better load stability. It is suitable for continuous production environments requiring consistent output quality.
The hydraulic system ensures smooth operation, low noise, and reliable performance in long-term industrial applications.
FAQ
Q: What materials can this machine process?
A: It can process steel, aluminum, copper, and other common metal materials.
Q: Can it support mass production?
A: Yes, it is designed for continuous industrial operation.
Q: Is customization available?
A: Yes, table size, stroke, and hydraulic system can be customized.
