500 Ton Gantry Hydraulic Press

Product Introduction

Designed for heavy duty industrial pressing applications, the 500 ton gantry hydraulic press by Ruicheng CNC is a powerful solution for metal forming, assembly pressing, and large component processing. With a rigid gantry frame structure and 500-ton pressing capacity, this machine provides stable force output and reliable performance for demanding production environments.

Equipped with an easy-to-operate foot switch control system, this hydraulic press improves working efficiency and operator convenience. The 800 × 800 mm worktable and 300 mm opening height provide sufficient space for various industrial pressing tasks.

Technical Specifications

Parameter	Specification
Machine Type	Gantry Hydraulic Press
Main Cylinder Force	500 Tons
Table Size	800 × 800 mm
Opening Height	300 mm
Main Stroke	100 mm
Control Method	Foot Switch Operation
Structure	Heavy Duty Gantry Frame

Key Features & Advantages

✅ Heavy Duty Pressing Capacity

The 500 ton pressing force provides strong performance for large component assembly, metal forming, and industrial pressing operations.

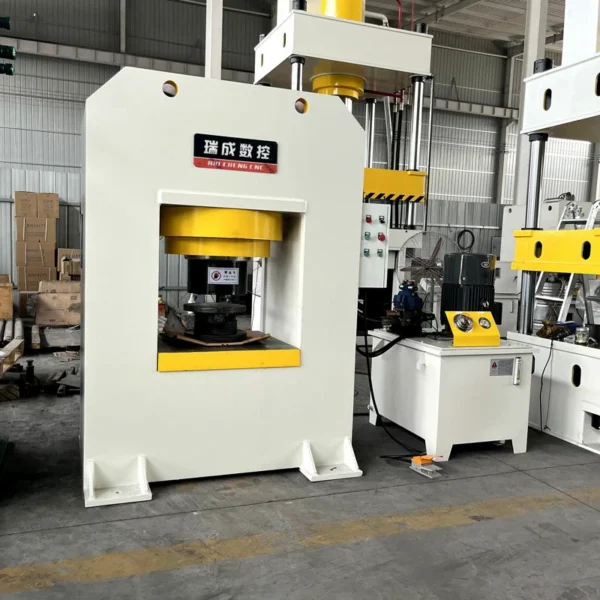

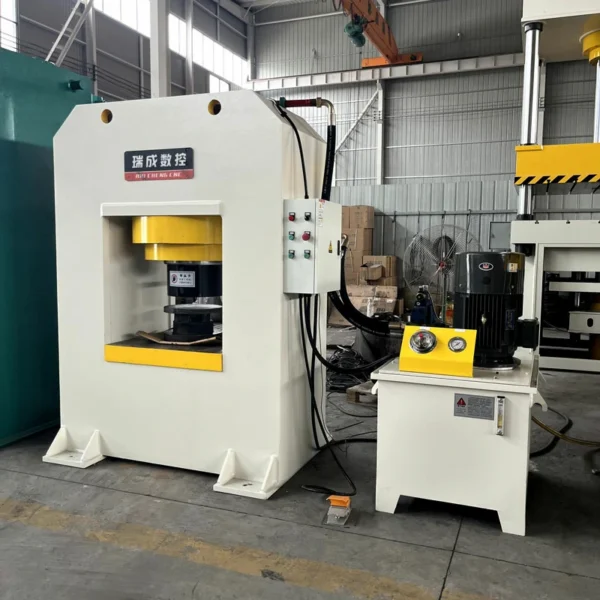

✅ Rigid Gantry Frame Design

The gantry structure offers excellent stability and working strength, reducing deformation during high-pressure operations.

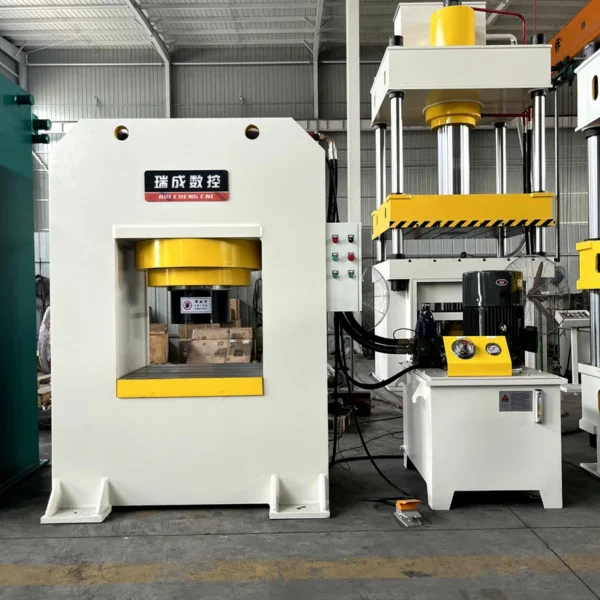

✅ Convenient Foot Switch Control

The foot switch allows operators to control pressing operations easily while keeping both hands available for workpiece positioning.

✅ Flexible Working Area

The 800 × 800 mm worktable provides a practical working platform for different sizes of industrial components.

Working Principle of the Gantry Hydraulic Press

The gantry hydraulic press operates by using hydraulic pressure generated from the hydraulic system to drive the main cylinder. The cylinder applies controlled downward force to complete pressing, forming, assembly, and correction operations.

The open gantry structure allows convenient loading and unloading of larger workpieces, making it suitable for various industrial applications requiring strong pressing force and flexible operation.

Typical Applications

This 500 ton hydraulic press is widely used in industrial manufacturing fields, including:

Heavy Duty Assembly Pressing
Metal Forming Applications
Large Component Pressing
Industrial Equipment Maintenance
Metal Correction and Straightening

Why Choose Ruicheng CNC?

As an experienced hydraulic press manufacturer, Ruicheng CNC provides reliable industrial pressing solutions with strict quality control. Every hydraulic press is tested before shipment to ensure stable performance, long service life, and safe operation.

We provide customized solutions including machine structure, working table size, hydraulic system configuration, and control methods according to different production requirements.

Learn more about our hydraulic press factory

Learn More About Hydraulic Technology

Hydraulic presses use fluid power to generate controlled mechanical force and are widely applied in modern manufacturing. You can learn more about hydraulic press principles from

hydraulic press technology
.

Frequently Asked Questions (FAQ)

Q: What are the main advantages of this 500 ton gantry hydraulic press?

The machine provides high pressing force, strong gantry structure, and flexible operation for heavy industrial applications.

Q: Why is a foot switch used on this hydraulic press?

The foot switch improves operation convenience and allows operators to control pressing cycles efficiently.

Q: Can this gantry hydraulic press be customized?

Yes, we can customize specifications such as pressing force, table size, stroke length, and control system according to customer requirements.
