200 Ton Four Column Hydraulic Press Machine

The 200 ton four column hydraulic press is a highly stable and robust industrial machine specifically engineered for metal forming, deep drawing, stamping, and general pressing applications. Widely utilized in heavy manufacturing environments, it delivers consistent pressure and reliable long-term performance. This machine features a classic three-beam four-column structure (三梁四柱), which is the industry standard for ensuring maximum rigidity and precision.

Overview of 200 Ton Four Column Hydraulic Press

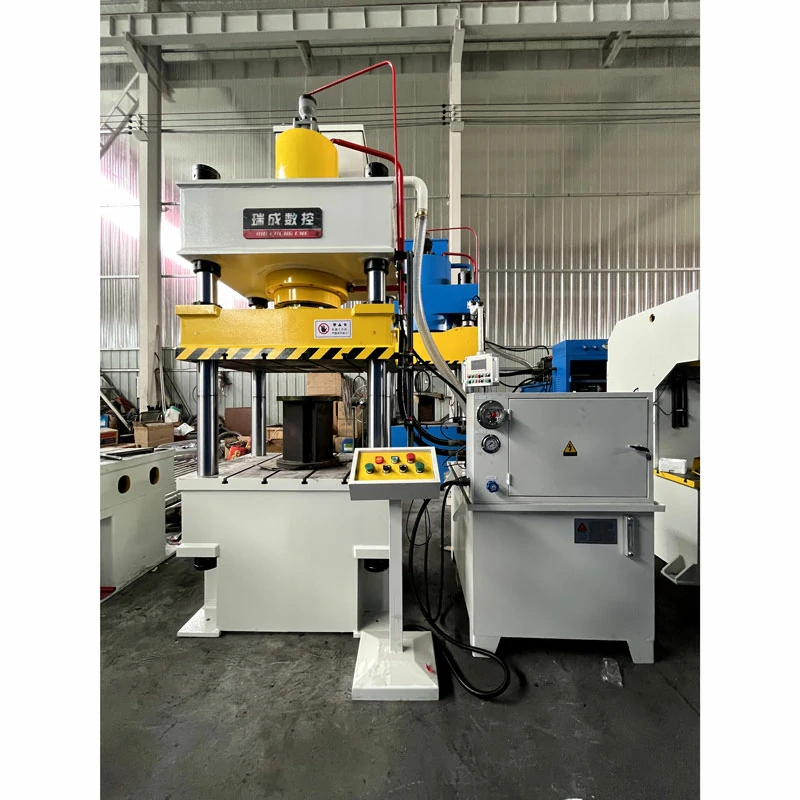

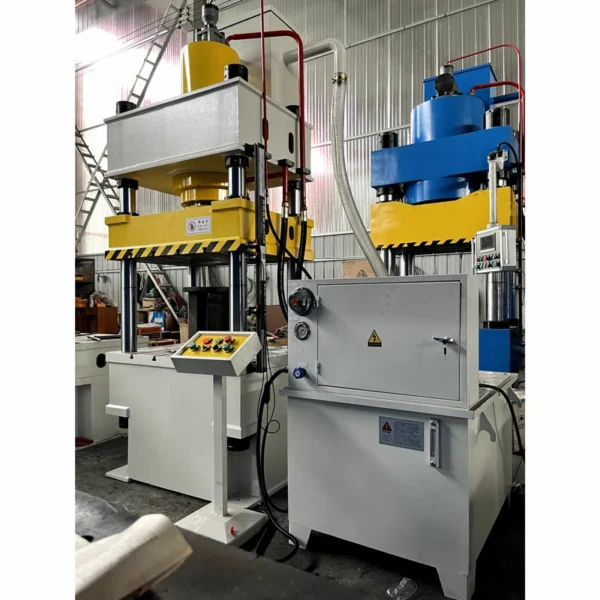

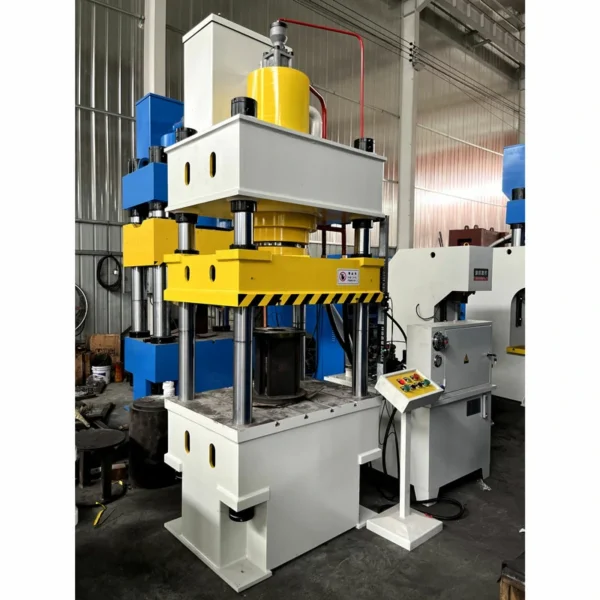

This heavy-duty equipment adopts a rigid three-beam and four-column design that ensures perfectly balanced force distribution during intense operation. The upper beam, moving beam (ram), and lower beam (worktable) are guided by four precision-machined columns. It is highly suitable for medium to heavy-duty metal forming tasks. The machine is equipped with a spacious 800×800mm worktable, providing ample working space to accommodate various molds and complex production requirements.

Technical Features of the 200 Ton Four Column Hydraulic Press

Designed for continuous industrial production, this press combines powerful hydraulics with precise mechanical engineering. Key features include:

• Robust Structure: The three-beam four-column structure minimizes lateral deflection and ensures high precision.
• Optimized Dimensions: Features a 600mm opening (daylight) and a 600mm stroke, providing flexible operation for different mold heights.
• Reliable Power Unit: Driven by a high-quality 7.5 kW motor paired with an advanced HY40Y hydraulic pump, ensuring smooth and pulse-free pressure output.
• Energy Efficient: The optimized hydraulic circuit reduces power consumption and noise levels during operation.
• Continuous Duty: Specifically engineered for 24/7 continuous industrial production environments.

Wide Applications in Manufacturing

This versatile 200 ton four column hydraulic press is widely used across multiple heavy industries. It is the ideal solution for:

• Sheet metal stamping, blanking, and bending processes
• Deep drawing and metal forming operations
• Assembly pressing and compression molding tasks
• Automotive parts and aerospace components manufacturing
• Plastic molding and rubber vulcanization

Technical Data and Specifications

Parameter	Specification
Machine Type	Three-beam Four-Column Hydraulic Press
Press Capacity	200 Ton (2000 kN)
Worktable Size	800 × 800 mm
Open Height (Daylight)	600 mm
Ram Stroke	600 mm
Main Motor Power	7.5 kW
Hydraulic Pump Model	HY40Y Series
Working Pressure	25 MPa

Safety Systems and Maintenance

Operator safety is our top priority. This 200-ton equipment is equipped with an emergency stop button, overload protection valves, and optional safety light curtains. For maintenance, regular checking of the hydraulic oil level and lubrication of the four guide columns will ensure the machine runs smoothly for decades.

Frequently Asked Questions (FAQ)

Q1: What is the advantage of the three-beam four-column structure?
A: The three-beam four-column design offers superior rigidity compared to C-frame presses. It ensures that the 200 ton force is applied perfectly vertically, preventing angular deviations and extending the life of your molds.

Q2: Can the 7.5kW motor and HY40Y pump be upgraded?
A: Yes, if you require faster cycle times, we can customize the hydraulic system with higher flow pumps or servo motors to increase efficiency while maintaining the 200 ton pressing capacity.

Conclusion

In summary, the 200 ton four column hydraulic press is an indispensable and reliable solution for industrial metal forming and stamping applications. With its stable three-beam structure, powerful 7.5kW motor, and precise HY40Y hydraulic system, it offers exceptional value for modern manufacturing workshops. Contact us today to request a quote or discuss your custom requirements!
