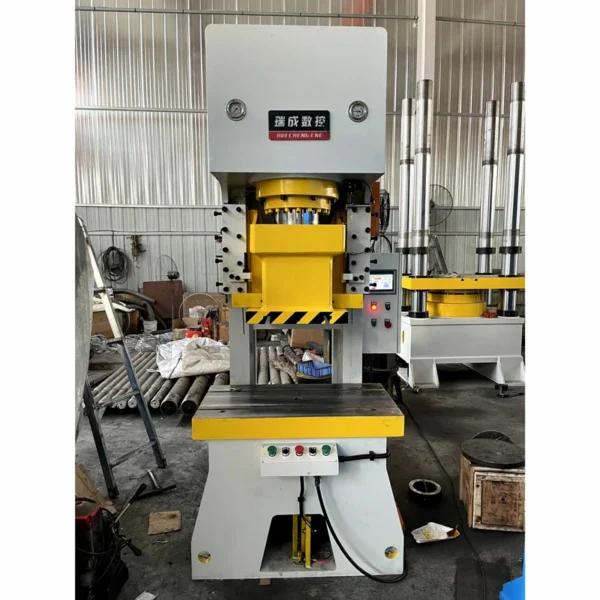

100 Ton Hydraulic Punch Press

Product Introduction

The 100 ton hydraulic punch press by Ruicheng CNC is designed for efficient metal punching, stamping, and forming applications. With a 100-ton pressing force, compact structure, and stable hydraulic control system, this machine provides reliable performance for industrial metal processing. Equipped with an air cooling system and a 10-ton lower ejector cylinder, it improves working efficiency and supports smooth part removal during production.

This hydraulic punching machine is suitable for sheet metal stamping, component pressing, and general metal forming tasks where accuracy and durability are required.

Technical Specifications

Parameter	Metric	Imperial
Main Cylinder Force	100 Tons	220,462 lbs
Lower Ejector Cylinder	10 Tons	22,046 lbs
Table Size	960 × 530 mm	37.80″ × 20.87″
Opening Height	460 mm	18.11″
Main Stroke	200 mm	7.87″
Cooling System	Air Cooling	Air Cooling System

Key Features & Advantages

✅ Stable Punching Performance

The 100-ton hydraulic system provides consistent pressing force, making it suitable for punching, stamping, and metal forming operations with high reliability.

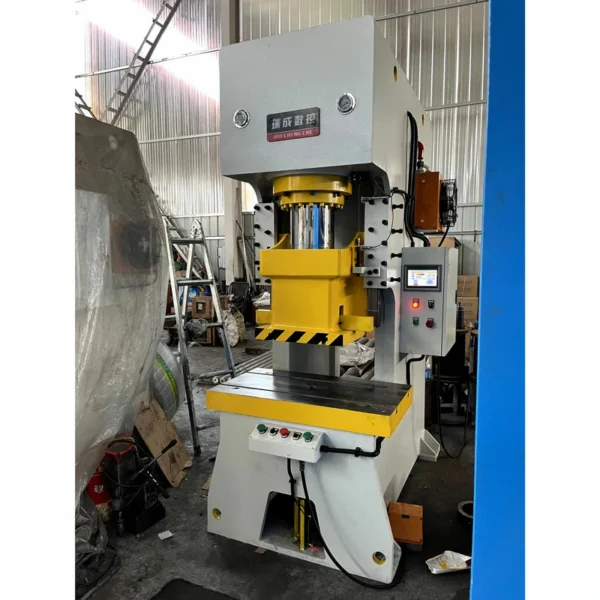

✅ Efficient Ejection System

The integrated 10-ton lower ejector cylinder helps remove processed parts quickly and improves production efficiency during repeated operations.

✅ Compact Industrial Design

With a 960×530mm working table and optimized structure, this hydraulic punch press saves space while maintaining strong processing capability.

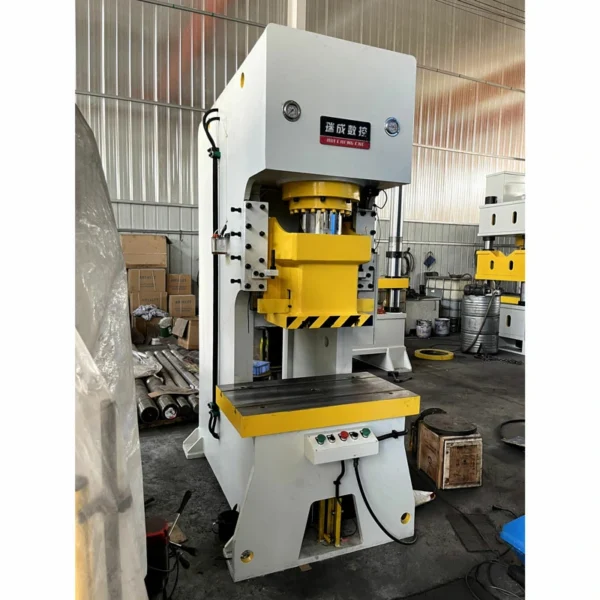

✅ Reliable Cooling System

The air cooling system helps maintain stable hydraulic operation and improves machine durability during continuous working cycles.

Working Principle of the 100 Ton Hydraulic Punch Press

The 100 ton hydraulic punch press uses hydraulic pressure generated by the hydraulic system to drive the main cylinder downward, creating powerful pressing force for punching and forming metal materials.

During operation, the upper tool moves vertically to complete the stamping process, while the lower ejector cylinder assists with part removal. This structure ensures smooth operation, accurate positioning, and efficient production for various metal processing applications.

Typical Applications

This versatile metal punching press is widely used in industries including:

Sheet Metal Stamping
Metal Punching and Blanking
Industrial Component Manufacturing
Small and Medium Metal Forming
Hardware Parts Processing

Why Choose Ruicheng CNC?

Ruicheng CNC provides reliable hydraulic equipment solutions for global industrial applications. Every hydraulic press is manufactured with strict quality control to ensure stable performance, long service life, and easy maintenance.

From standard machines to customized hydraulic solutions, we support customers with professional technical guidance and after-sales service.

Contact our engineering team today to discuss your hydraulic punching requirements.

Learn More About Hydraulic Technology

Hydraulic presses are widely used in modern manufacturing for controlled pressing, forming, and metal processing applications. Understanding hydraulic technology helps users select the right machine for different production requirements.

Frequently Asked Questions (FAQ)

Q: What materials can this 100 ton hydraulic punch press process?

A: This machine is suitable for processing various metal materials, including steel sheets, aluminum parts, and other industrial components.

Q: Can the hydraulic punch press be customized?

A: Yes, we can customize specifications such as table size, stroke length, hydraulic system configuration, and control options according to customer requirements.
