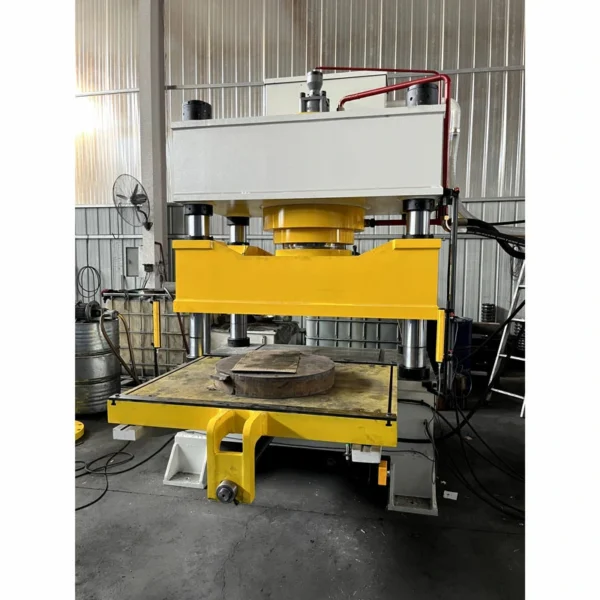

500 Ton Four Column Hydraulic Press

Product Introduction

The 500 ton four column hydraulic press by Ruicheng CNC is a heavy duty industrial machine designed for large-scale metal forming and precision pressing applications. Featuring a three beam four column structure, this hydraulic press provides excellent rigidity, stable operation, and reliable performance for demanding manufacturing environments.

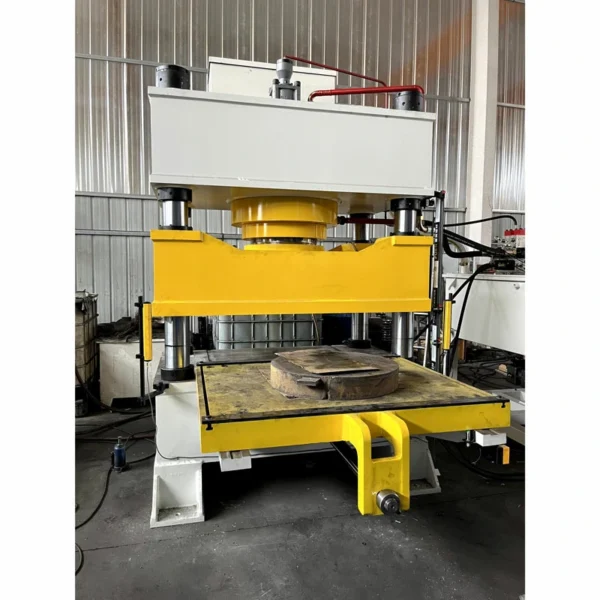

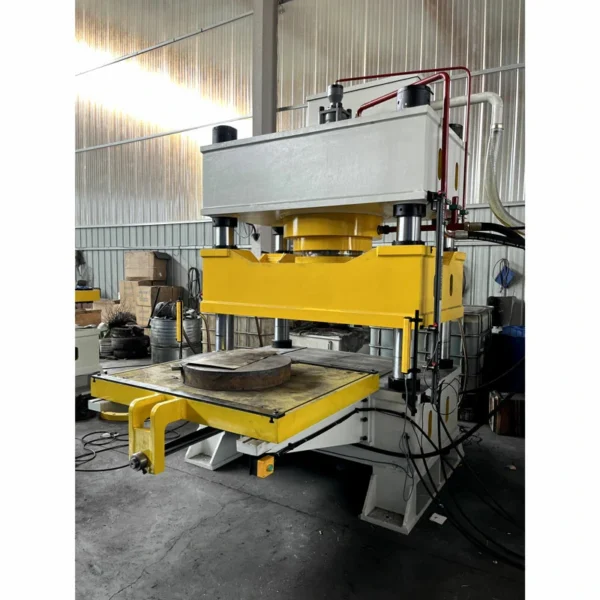

Equipped with a 1300 × 1100 mm movable worktable and a 47kW servo motor system, this 500 ton hydraulic press delivers accurate control, efficient operation, and flexible production capability for various industrial forming processes.

Technical Specifications

Parameter	Specification
Machine Type	Three Beam Four Column Hydraulic Press
Main Pressing Force	500 Tons
Working Table Size	1300 × 1100 mm
Movable Table Travel	1100 mm
Opening Height	300 mm
Main Stroke	300 mm
Motor Power	47 kW Servo Motor

Key Features & Advantages

✅ Heavy Duty Pressing Capacity

The 500 ton hydraulic system provides strong and stable pressing force, making it suitable for heavy industrial metal forming operations.

✅ Rigid Three Beam Four Column Structure

The three beam four column design offers excellent frame strength and improves stability during high-load pressing processes.

✅ Movable Worktable Design

The 1300 × 1100 mm movable worktable improves loading efficiency and provides convenient mold installation and replacement.

✅ High Precision Servo Control

The 47kW servo motor system helps achieve accurate speed control, energy efficiency, and consistent pressing performance.

Working Principle of the 500 Ton Hydraulic Press

The 500 ton four column hydraulic press uses hydraulic power to generate controlled pressing force through the main cylinder. The rigid frame structure distributes load evenly during operation, ensuring stable forming performance and long service life.

The servo motor system provides precise control of hydraulic operation, allowing the machine to adjust working speed and improve production efficiency according to different forming requirements.

Typical Applications

This heavy duty hydraulic press is widely used in industrial manufacturing applications, including:

Large Metal Forming
Compression Molding
Industrial Component Pressing
Sheet Metal Forming
Heavy Machinery Manufacturing

Why Choose Ruicheng CNC?

Ruicheng CNC specializes in manufacturing industrial hydraulic press machines with reliable structures and customized solutions. Every 500 ton four column hydraulic press is manufactured with strict quality control to ensure stable performance and long service life.

We provide customized hydraulic press solutions including working table dimensions, hydraulic systems, motor configurations, and control options according to customer requirements.

Learn more about our hydraulic press factory

Learn More About Hydraulic Technology

Hydraulic presses are widely used in modern manufacturing to provide controlled mechanical force for forming and pressing operations. You can learn more about the basic working principles of hydraulic presses through

hydraulic press technology
.

Frequently Asked Questions (FAQ)

Q: What makes this 500 ton four column hydraulic press different?

This machine features a heavy duty three beam four column structure, movable worktable, and servo motor control for improved stability and precision.

Q: Can the movable worktable be customized?

Yes, the worktable size, travel distance, and hydraulic configuration can be customized according to different production requirements.

Q: What industries can use this hydraulic press?

It is suitable for metal forming, compression molding, industrial component pressing, and other heavy manufacturing applications.
