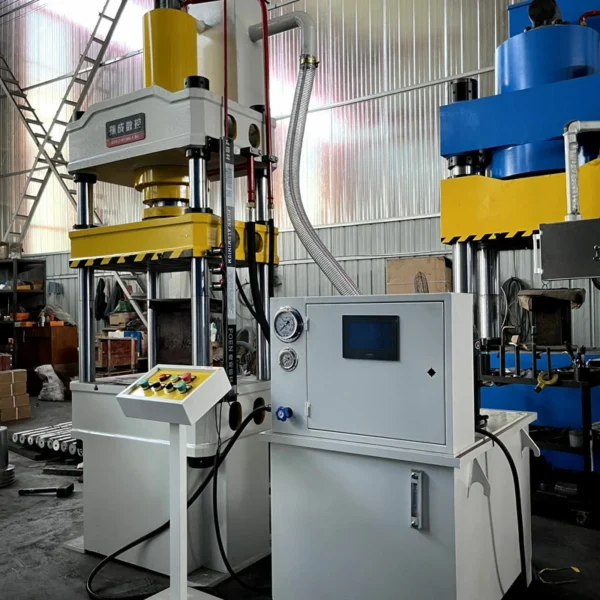

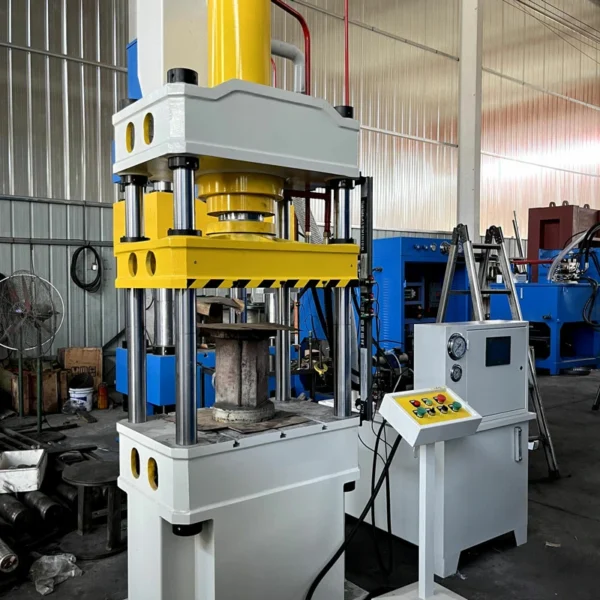

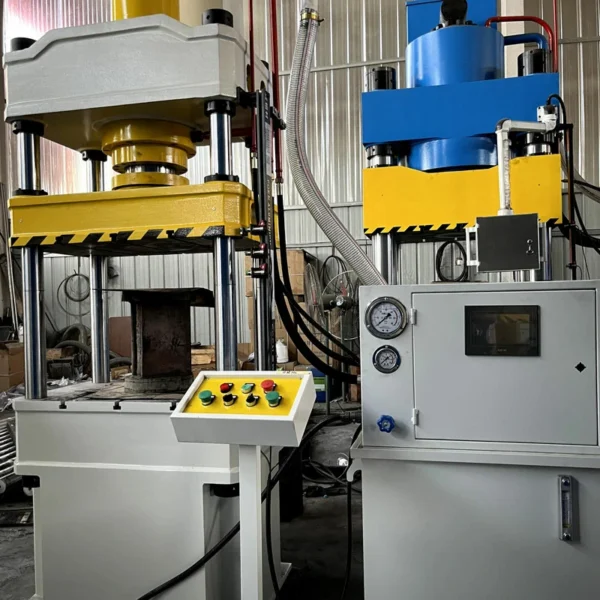

100 Ton Three-Beam Four-Column Hydraulic Press Machine
A 100 ton three-beam four-column hydraulic press with PLC control, designed for metal forming, stamping, and sheet metal processing with stable industrial performance.
Product Overview
This 100 ton hydraulic press machine is designed for metal forming, stamping, and sheet metal processing applications. It features a three-beam four-column structure combined with a PLC control system, providing stable performance for daily industrial use.
The machine is commonly used in manufacturing workshops where consistent pressure and reliable operation are required for forming different metal parts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Hydraulic Press Machine |
| Capacity | 100 Ton |
| Structure | Three-Beam Four-Column |
| Table Size | 700 × 620 mm |
| Opening Height | 600 mm |
| Stroke | 600 mm |
| Control System | PLC Touch Screen |
Main Features
Stable Frame Structure
The rigid frame design helps maintain stability during continuous pressing and forming operations.

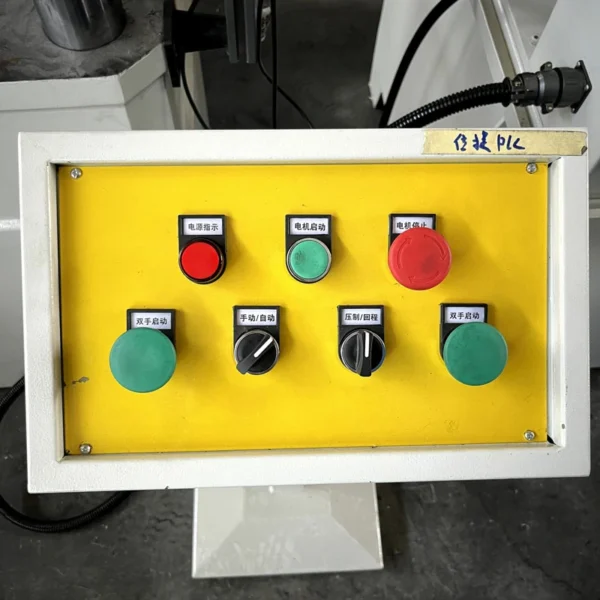

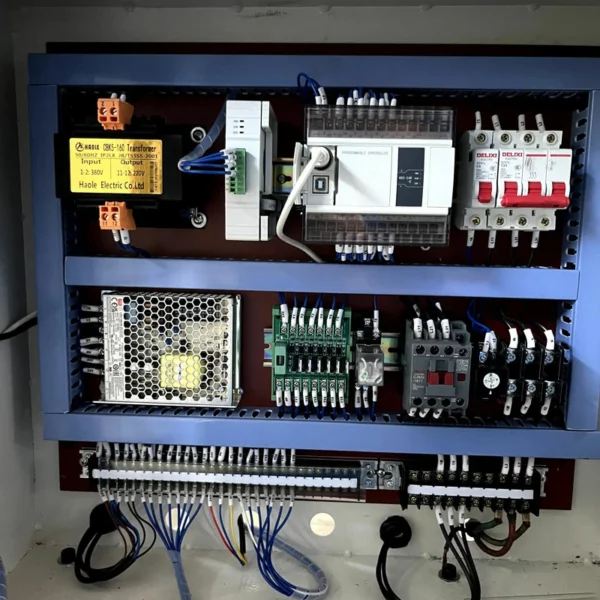

PLC Controlled Operation
The control system allows operators to adjust pressure and stroke easily through a touch screen interface.
Industrial Application Flexibility
Suitable for various forming tasks including stamping and general metal processing.
Working Principle
The machine works through hydraulic transmission, where pressure generated by oil flow is converted into mechanical force for forming metal materials.
More technical reference can be found on hydraulic press principle.
Applications
- Metal Forming
- Sheet Metal Stamping
- Industrial Pressing
- Automotive Parts Processing
- General Manufacturing
