63 Ton Single Arm Hydraulic Press

Product Introduction

The 63 ton single arm hydraulic press (also known as C-frame hydraulic press) is a highly efficient industrial pressing machine specifically designed for metal forming, stamping, bending, and precision pressing applications. With a rigid single arm structure, this equipment provides exceptionally convenient operation space and stable performance for different manufacturing processes.

Equipped with an advanced fast filling valve system and a precision guide block, this press significantly improves working efficiency while maintaining accurate movement during pressing operations. The compact and space-saving structure makes it highly suitable for workshops and production lines where space efficiency and reliable performance are crucial.

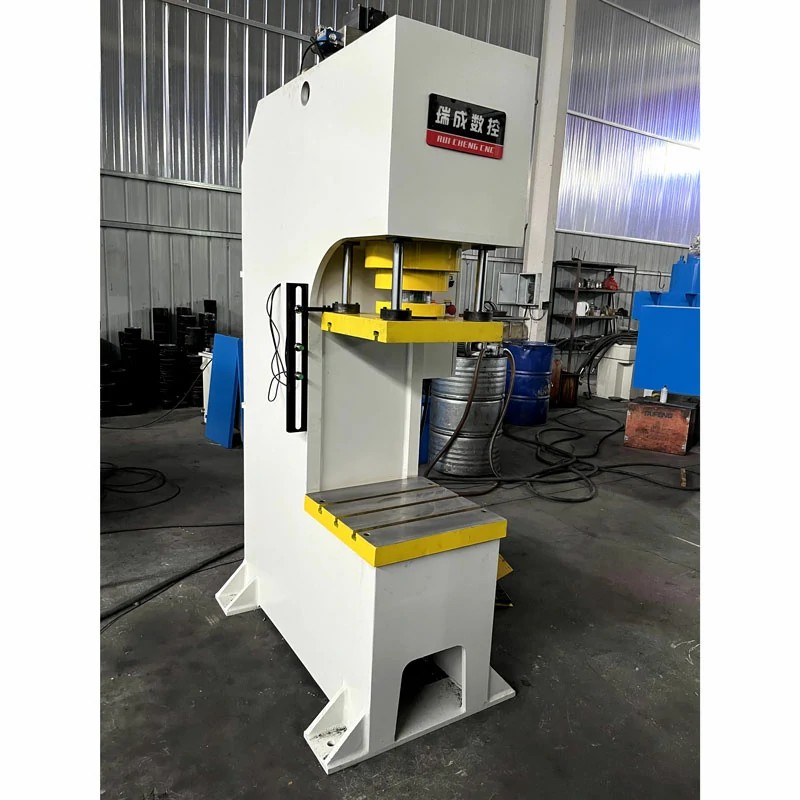

63 ton single arm hydraulic press front view for metal forming

Technical Specifications

Parameter	Specification
Machine Type	Single Arm / C-Frame Hydraulic Press
Nominal Force (Capacity)	63 Ton (630 kN)
Table Size	500 × 500 mm
Effective Working Area	400 × 400 mm
Guide System	Precision Flat Guide Block
Hydraulic System	Fast Filling Valve System
Max. Opening Height	Customizable (Standard: 500 mm)
Motor Power	5.5 kW / 7.5 kW

Key Features & Advantages

Compact Single Arm (C-Frame) Design

The single arm structure provides excellent 3-sided access to the working area, allowing operators to load and unload workpieces easily and complete different pressing tasks efficiently.

Fast Hydraulic Response System

The integrated fast filling valve system dramatically improves cylinder movement speed during non-working strokes (idle strokes), helping to increase overall production efficiency and reduce cycle times.

Stable Precision Performance

The precision guide block design effectively improves movement stability, minimizes lateral deflection, and helps maintain consistent pressing accuracy during heavy-duty operations.

Reliable Industrial Construction

Built for continuous industrial use, this 63 ton hydraulic press features a stress-relieved steel frame that provides dependable performance and long service life for various metal processing requirements.

Working Principle

The machine uses hydraulic pressure to generate massive mechanical force. Hydraulic oil supplied by the pump drives the main cylinder movement, allowing controlled pressing, bending, and forming of metal components.

The filling valve helps improve hydraulic efficiency by allowing faster cylinder movement when high pressing force is not required (such as rapid approach and return strokes). This intelligent design reduces cycle time while maintaining stable operation.

For more information about the basic working principle of hydraulic equipment, you can refer to
hydraulic press technology on Wikipedia.
Additionally, understanding the metal forming processes can help you optimize your production line.

Wide Applications

This versatile 63 ton single arm hydraulic press is widely used across various manufacturing sectors. Typical applications include:

Sheet Metal Forming & Bending
Industrial Blanking & Stamping
Component Assembly Pressing
Motor Lamination Pressing
Automotive Parts Manufacturing
Hardware & Electronics Pressing

Safety Features

Operator safety is our top priority. The 63 ton single arm hydraulic press is equipped with comprehensive safety systems:

Emergency Stop Button: Strategically placed for immediate machine halting in case of emergency.
Overload Protection Valve: Automatically relieves pressure if the force exceeds 63 tons, protecting the machine and molds.
Two-Hand Control Option: Available to ensure the operator’s hands are safe during the pressing cycle.
Safety Light Curtains: Optional industrial sensors that stop the ram if an obstacle is detected in the working zone.

Maintenance and Care

To ensure optimal performance and extend the service life of your hydraulic press, regular maintenance is essential:

Daily: Check hydraulic oil level, clean the worktable, and inspect for any unusual noises.
Weekly: Lubricate the precision guide blocks and check electrical connections.
Monthly: Inspect hydraulic hoses for wear, clean the oil filter, and check system pressure.
Annually: Replace the hydraulic oil completely and conduct a comprehensive machine inspection.

Frequently Asked Questions (FAQ)

Q1: Can the working area and stroke be customized?

A: Yes, as a direct manufacturer, we can customize the table size, stroke length, and opening height according to your specific workpiece and mold requirements.

Q2: What is the warranty period for this 63 ton press?

A: We provide a 12-month free warranty for core components (excluding easy-wear parts) and lifetime online technical support.

Q3: How do you pack the machine for shipping?

A: The machine is packed in a strong, fumigation-free wooden case, which is fully suitable for ocean freight and long-distance transportation.

Why Choose Our Single Arm Hydraulic Press?

This 63 ton single arm hydraulic press combines a compact structure, efficient hydraulic performance, and precise guiding technology. It is an ideal choice for manufacturers looking for a reliable, cost-effective metal forming press for daily production needs.

Compared with larger four-column hydraulic equipment, this C-frame machine provides easier operation, faster setup, and flexible installation while still delivering stable 63-ton pressing force for light to medium industrial applications.

Related Hydraulic Press Products

Explore more solutions from our comprehensive hydraulic press product range:

Conclusion

In summary, the 63 ton single arm hydraulic press is an indispensable asset for modern metalworking workshops. With its fast filling valve system, precision guide blocks, and robust C-frame design, it guarantees high efficiency and product quality. Contact us today to request a free quote and technical consultation!
